Outrigger Bundle
$1,299.00
$1,696.00
Expand your bench for full-sheet processing, offcut support, vertical work, rail storage, and right-side blade cuts. A folding, portable system for larger material handling. Always our best price. Bundle savings are already included, so these bundles do not go on sale.
Quantity
-
+
Add to Cart
Buy Now
Free shipping on orders over $100
Designed in Boulder, CO
Assembled in the U.S.A
Quality Guaranteed
Rigorously tested and inspected.
Buy with Confidence
Satisfaction guaranteed
Direct Support
Talk to Rob, the inventor
$397
You Save vs á la carte (23.4%)
2
Outriggers Included
35.5"
Work Height (Adjustable)
9+
Compatible Bench Types
01 / CAPACITY
Full sheets. Crosscuts, rips, and accurate splits.

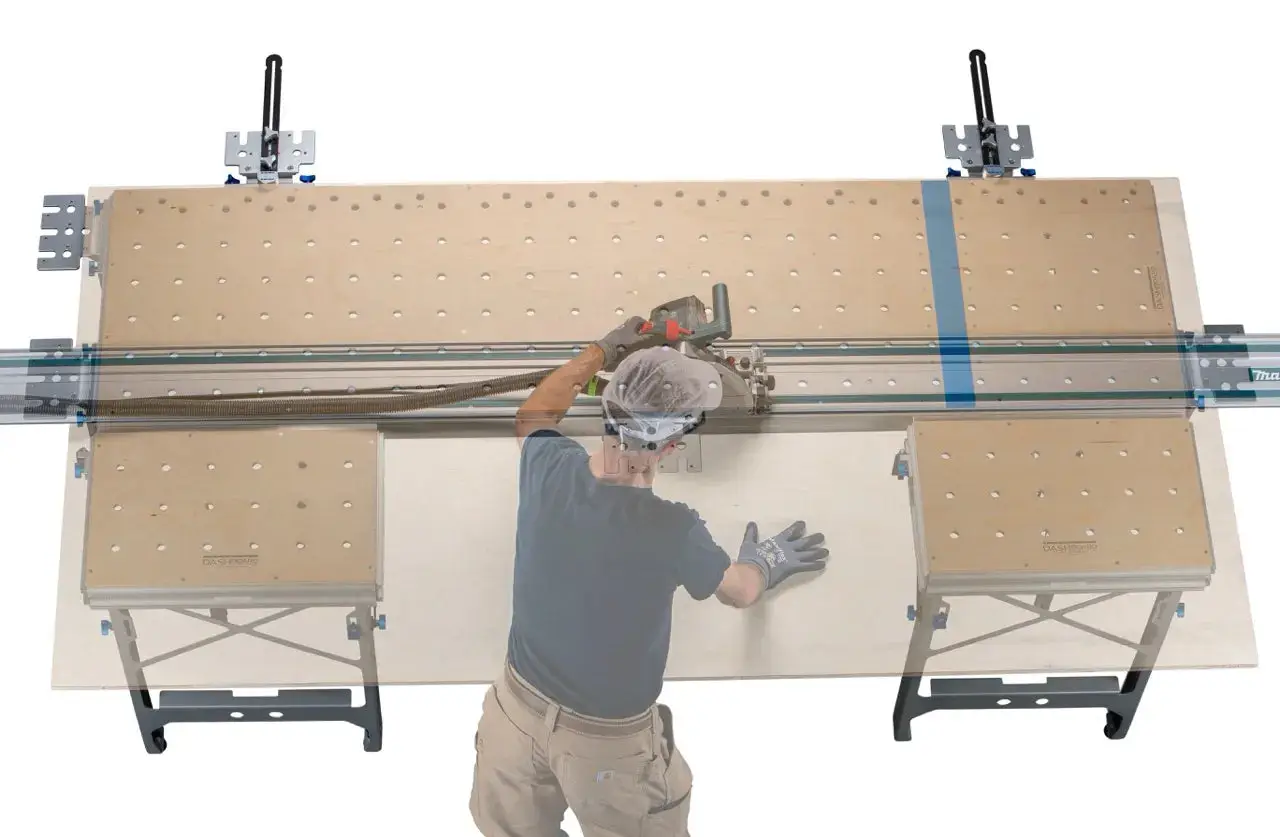

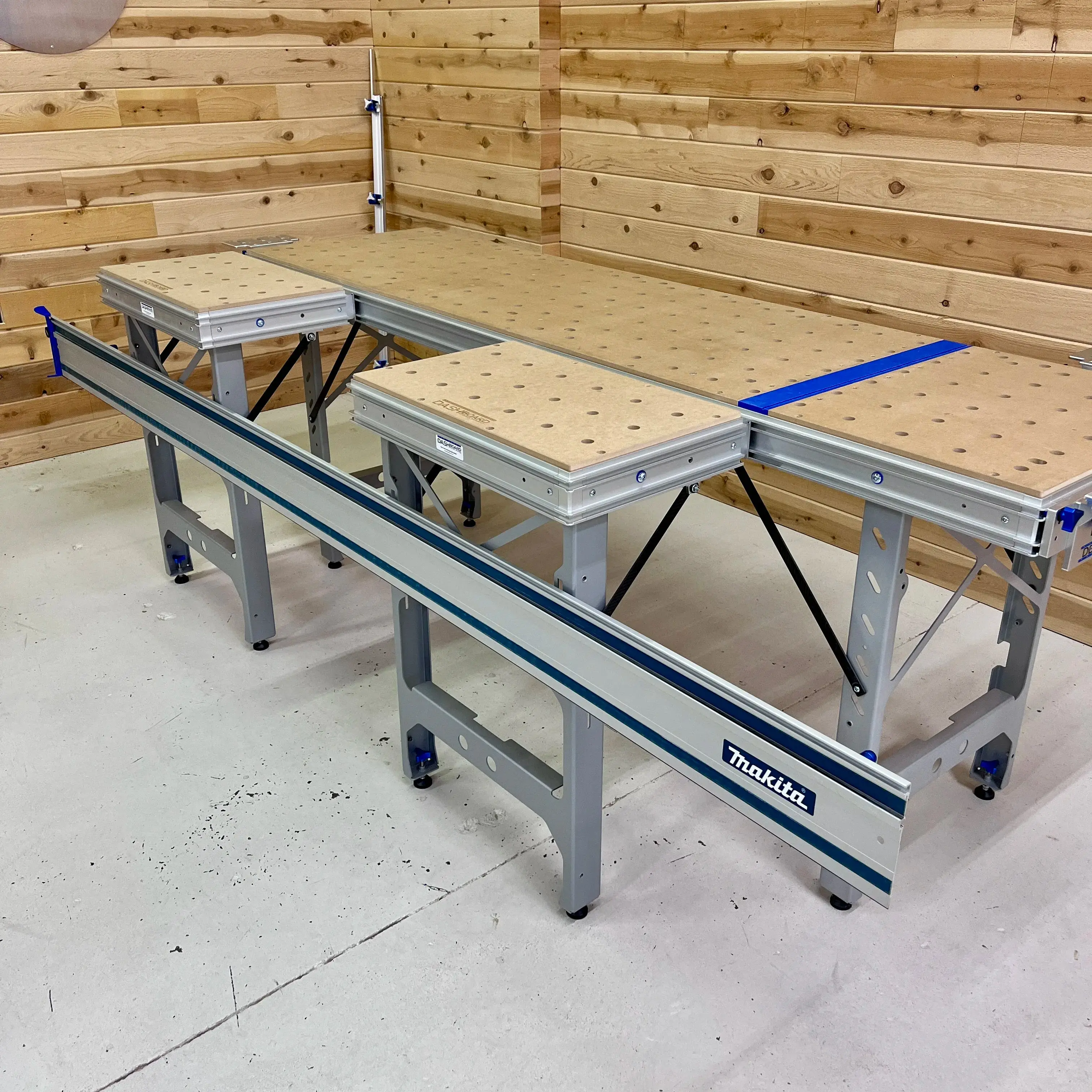

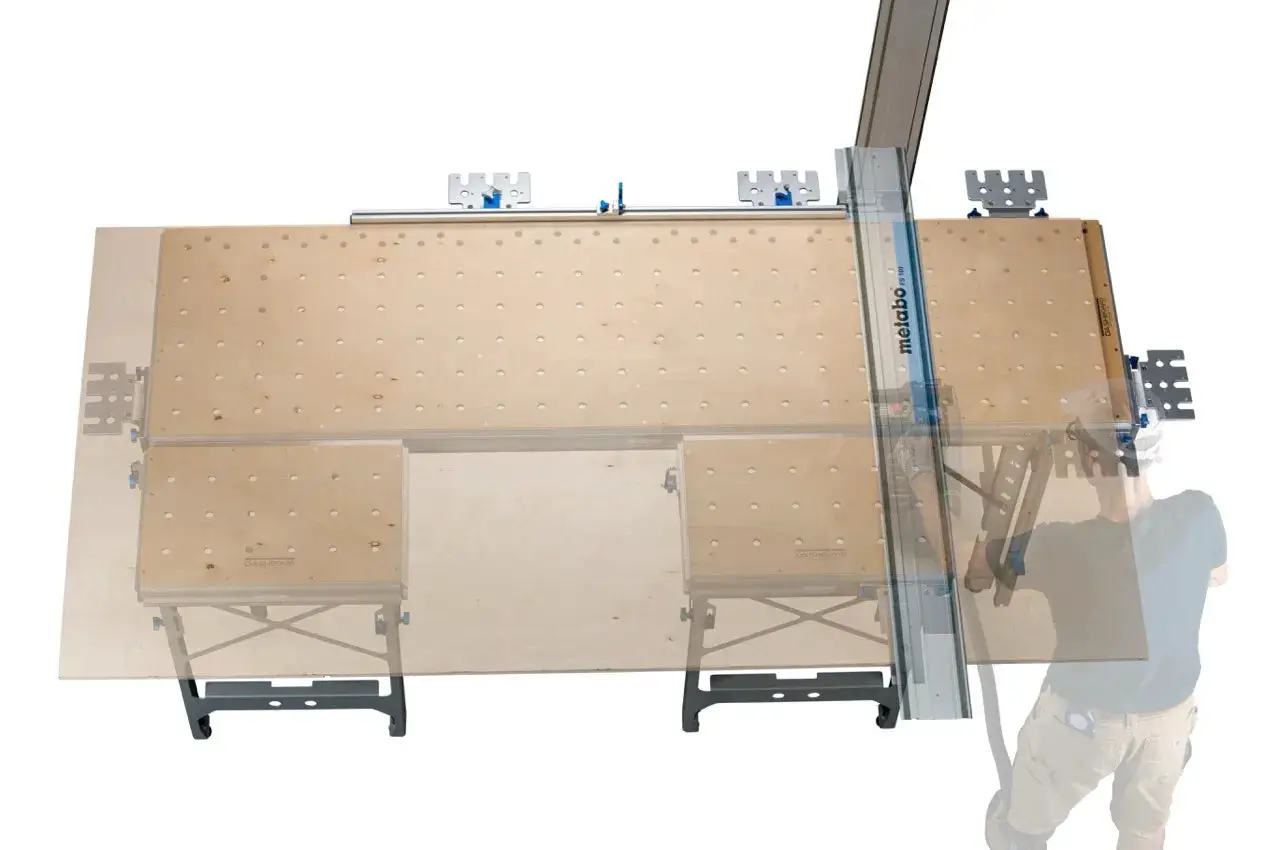

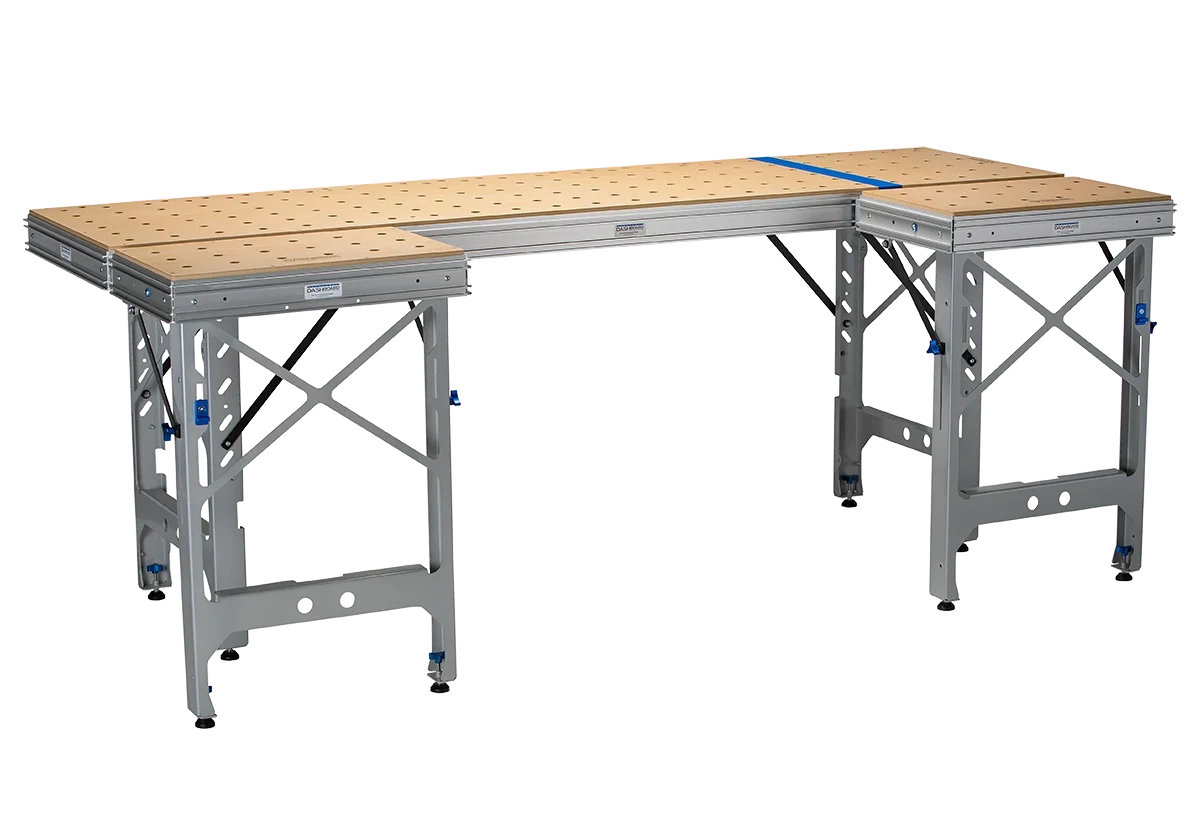

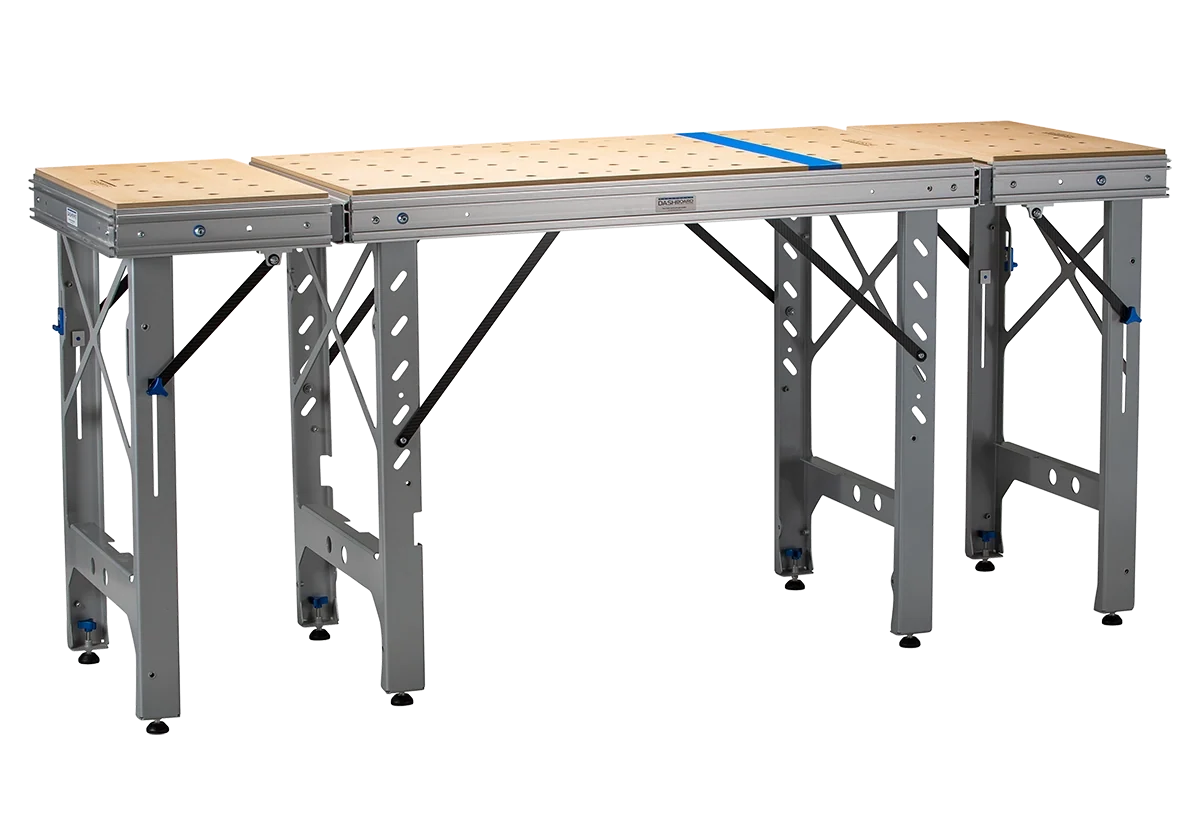

The Outrigger Bundle is the configuration that turns a compatible portable workbench into a true full-sheet processing platform. Designed to process 4x8 sheets with an intentional gap between the bench and the Outriggers, so all you cut is the material and air beneath it, never the bench. Crosscut full sheets to dimension. Rip full sheets along their long axis. Accurately split full sheets into matched halves or sections.
- Full-sheet crosscuts
- Full-sheet rips
- Accurate splits and dimensional sheet breakdown
- Offcut support across the extended platform
02 / PORTABILITY
Folds up. Stores against a wall.

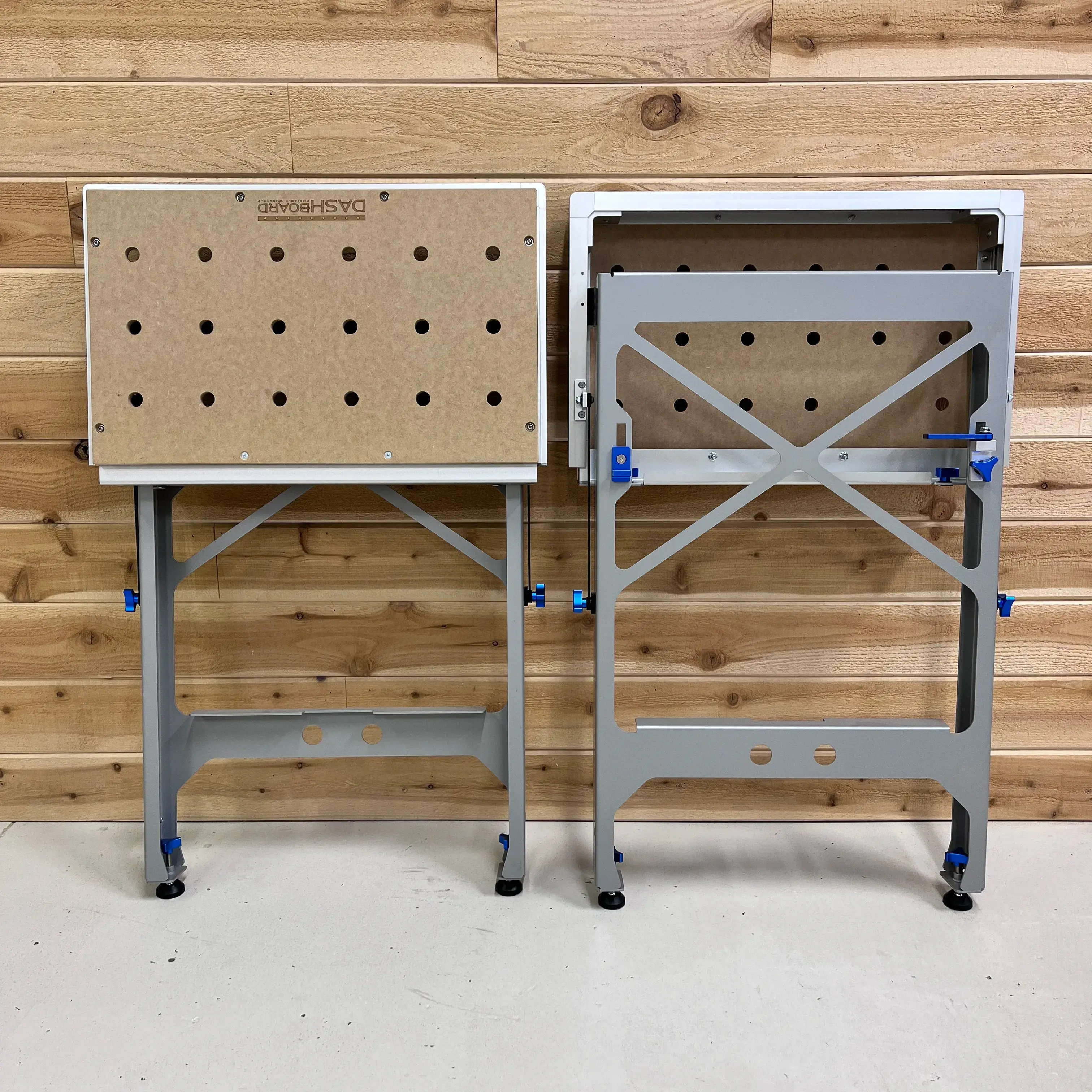

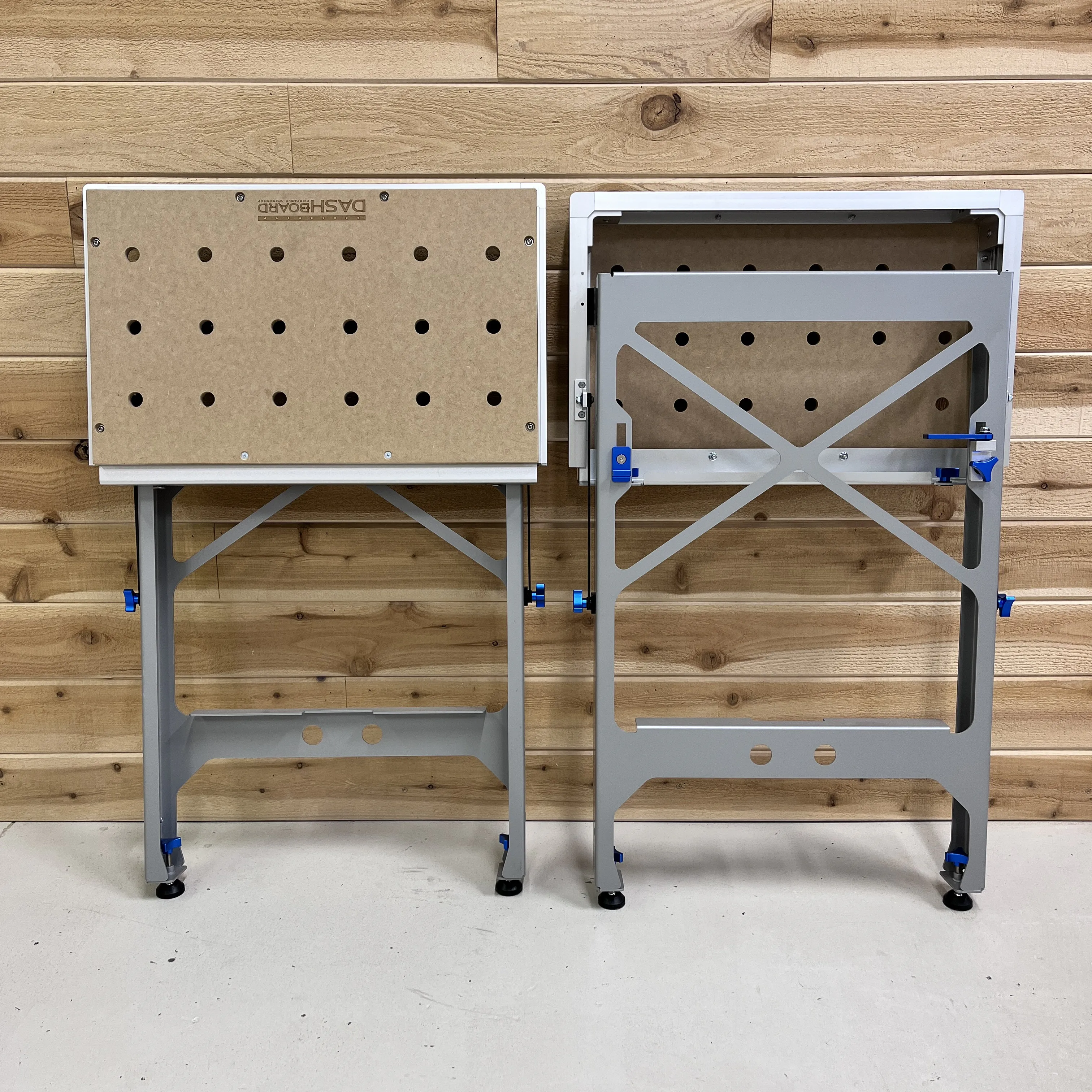

The defining feature of the Outrigger is the folding leg design. Each Outrigger collapses flat for storage, fitting against a shop wall or in a vehicle, without giving up structural strength when deployed. Each unit is the same width as the Dash-Board bench (15.875" front-to-back) with a 24.5" length. Leg levelers handle uneven surfaces, and the work surface tunes flush with your bench top using tool-free hardware.
- Folding leg design collapses flat for storage
- Same depth as the Dash-Board (15.875")
- Leg levelers handle uneven surfaces
- Work surface tunes flush with your bench
03 / COMPATIBILITY
Works with the bench you already own.

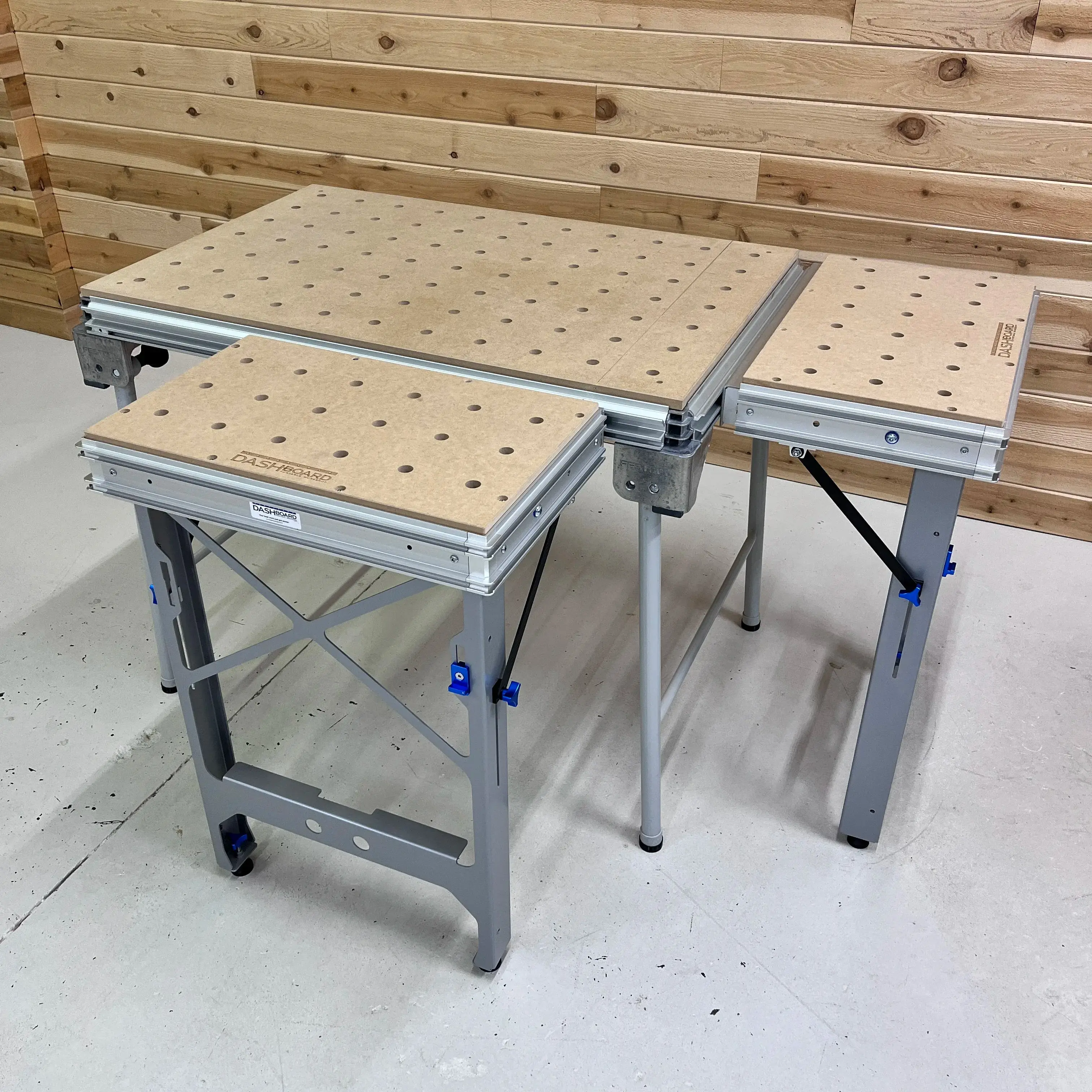

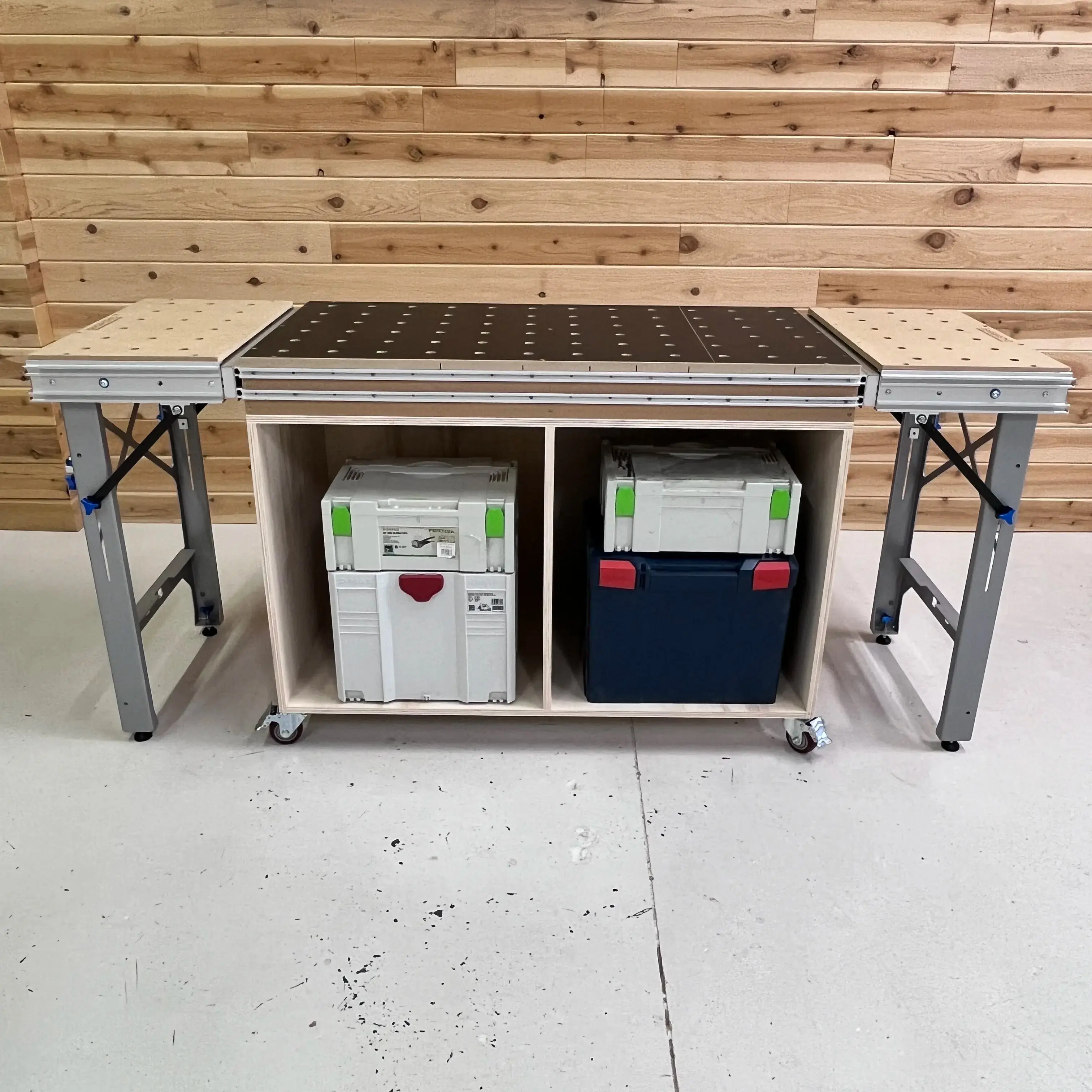

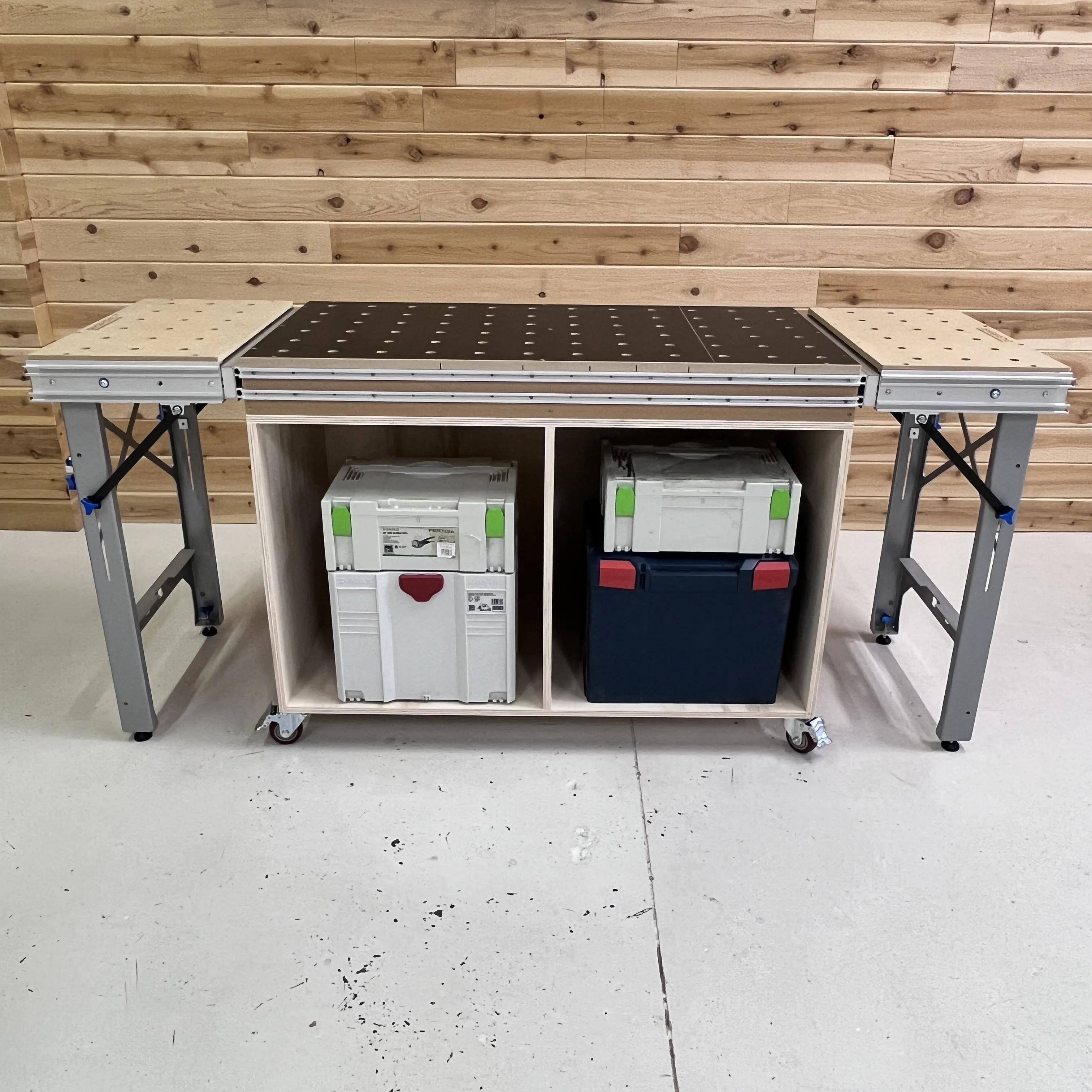

The Outrigger is one of the most universally compatible products in the Dash-Board line. It mounts to the Dash-Board, ShortCut, Festool MFT3, Festool 1080, Benchdogs Ultra MFT, Kreg ACS, TrackTubes, T-slot extrusion tables (minimum 8mm slot), wood-frame tables with standard T-track, and DIY benches at the recommended 35.5" to 36" working height.
- Dash-Board and ShortCut benches
- Festool MFT3 and 1080
- Benchdogs Ultra MFT, Kreg ACS, TrackTubes
- T-slot extrusion tables, T-track tables, DIY benches at 35.5"-36" height
04 / SYSTEM ROLE
Rip Stops. Rail Hangers. Built into the design.

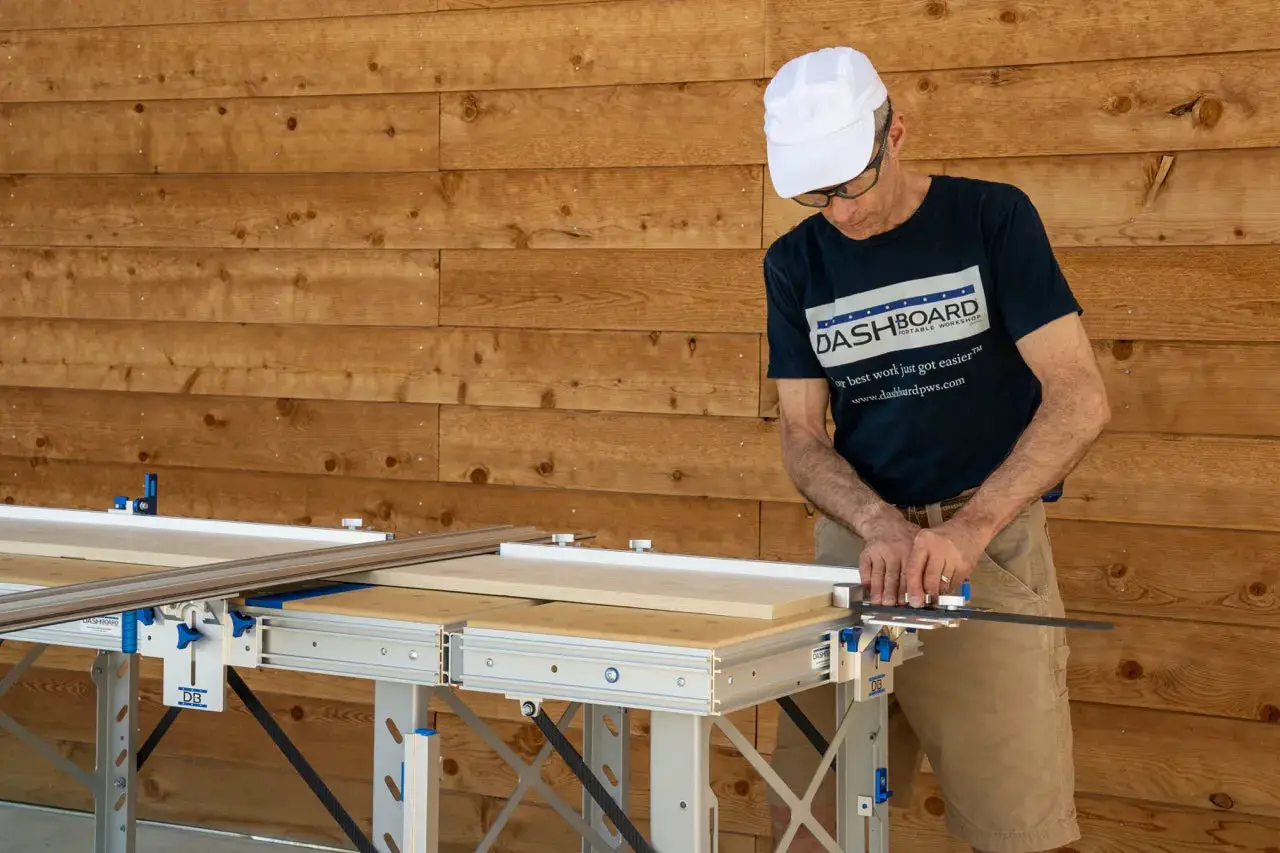

The Outrigger Bundle isn't just two folding platforms. It includes 2 Rip Stops and 2 Rail Hangers. The pair of Rip Stops act as a fence for accurate rips on the right side of the blade. The Rail Hangers store your guide rail between cuts, off the work surface and ready to grab.
- 2 Outriggers (folding platforms)
- 2 Rip Stops (right-of-blade cut setting)
- 2 Rail Hangers (guide rail storage)
- Complete capability upgrade in one bundle
Product Specs

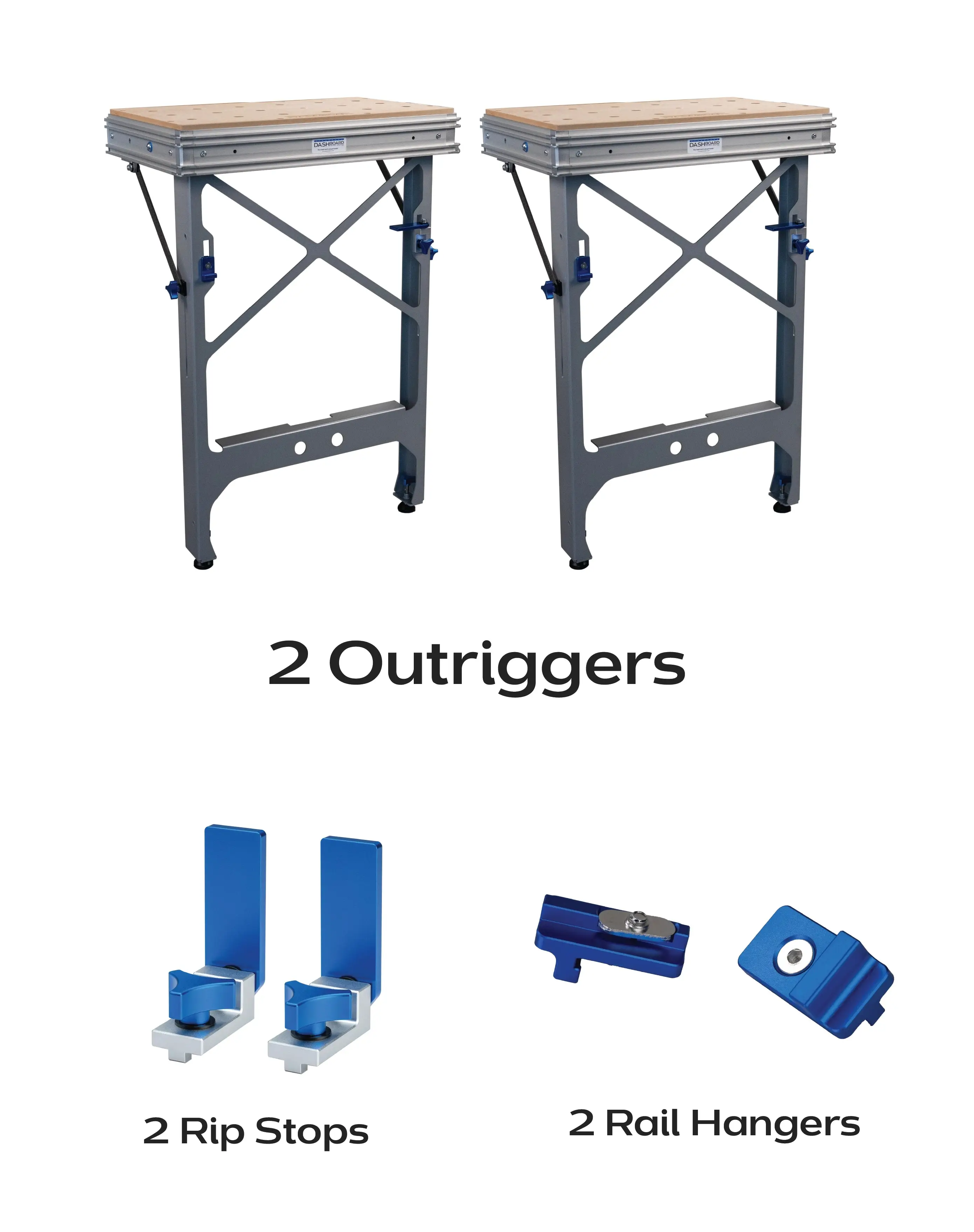

What’s in the box:
- 2 Outriggers
- 2 Rip Stops
- 2 Rail Hangers
Materials:
- Anodized and powder-coated aluminum
- MDF
- Rubber Feet
- Carbon fiber
Specifications:
- Height: 35.5” (900mm) with leg levelers to allow tool-free adjustment on uneven surfaces, while the mounting hardware is easily tuned so the top surface planes out with your tabletop.
- Depth: 15.875” (400mm) front-to-back
- Length: 24.5” (622mm)
- Grid of 20mm holes for various uses
- Dash-Board frame extrusion with dual clamp tracks
- Integrated Rail Hanger mounts
- Accepts our Door and Panel Supports
Key Functions:
- Crosscut full sheets
- Rip full sheets
- Accurately split full sheets
- Offcut support
- Expands Guide Rail Bracket and Track Star capacity
- Expands Parallel Guide and fence mounting
- Allows vertical work with Door and Panel Supports
- Convenient rail storage
- Clamping surface
- Set Rip Stops and Parallel Guides on the right side of the blade
- Use your imagination!
Key Features:
- Height-adjustable for compatibility with various work tables
- Worktop with 20mm holes
- Comfortable all-metal knobs
- Integrated Rail Hangers
- Strong, rigid Dash-Board leg
- Leg Levelers for uneven surfaces
- Folding & readily portable
- Same width as our benches
Product Safety:
- Be mindful of pinch points
- Secure all hardware before use to avoid accidents or injury.
- Use appropriate lifting form to avoid injury
- Keep out of reach of children
- Workbenches and Outriggers not intended as standing platforms
- For safest operation please keep static loads below 300 lbs or 136 kg
- Disassembly or product alterations are not recommended
- Do not use products for uses other than intended
